AWS CloudWatch

Introduction

Amazon CloudWatch Logs centralizes the logs of your AWS resources. FlowG can send its log records to a CloudWatch log stream, so they can be queried with Logs Insights, or used to trigger metric filters and alarms.

Setting up CloudWatch Logs

FlowG writes to an existing log stream, it does not create it. Create the log group and the log stream first:

aws logs create-log-group --log-group-name flowg

aws logs create-log-stream \
  --log-group-name flowg \
  --log-stream-name logs

Then, create an IAM user for FlowG:

aws iam create-user --user-name flowg

Attach a policy allowing it to write to that stream:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": ["logs:PutLogEvents"],
      "Resource": "arn:aws:logs:eu-west-3:123456789012:log-group:flowg:log-stream:logs"
    }
  ]
}

aws iam put-user-policy \
  --user-name flowg \
  --policy-name flowg-cloudwatch-logs \
  --policy-document file://flowg-cloudwatch-logs.json

note

Change eu-west-3 to your region if different.
Replace 123456789012 with your AWS account ID.

Finally, create an access key for that user:

aws iam create-access-key --user-name flowg

The command returns the AccessKeyId and the SecretAccessKey that FlowG will use to authenticate.

note

The secret access key is only displayed once, at creation time.

Setting up the FlowG pipeline

First, let's create an "AWS CloudWatch Forwarder" named cloudwatch, with the following configuration:

Forwarder TypeAWS Cloudwatch

App IDflowg

AWS endpointhttps://logs.eu-west-3.amazonaws.com

Regioneu-west-3

Access key ID...

Secret access key••••••••••••

Session token

Groupflowg

Streamlogs

Then, create a pipeline that forwards logs received via Syslog to the cloudwatch forwarder:

SourceSYSLOG

Forwardercloudwatch

And that's it!

Testing

You can test the setup by sending a log to the pipeline using the logger command:

logger -n localhost -P 5514 -t myapp1 'hello world'

You can then read the log events back with:

aws logs tail flowg --follow

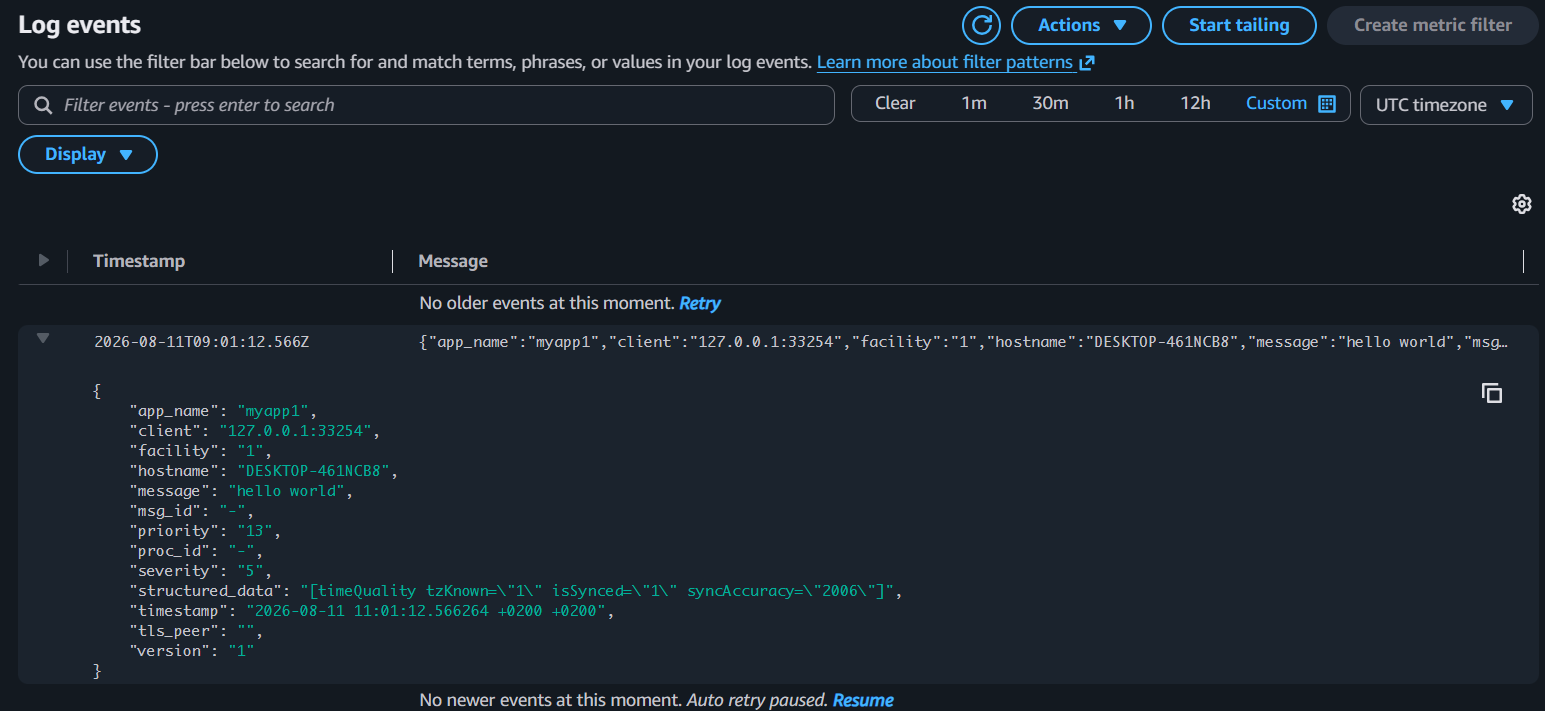

Or find them in the CloudWatch console, under "Log groups" > flowg > logs.

The fields of the log record are sent as a JSON object in the message of the log event, and the timestamp of the record is used as the timestamp of the event.
