Clickhouse

Clickhouse is an open-source column-oriented DBMS (columnar database management system) for online analytical processing (OLAP) that allows users to generate analytical reports using SQL queries in real-time.

Setting up Clickhouse

The fastest way to set up Clickhouse for testing is to use a docker container:

docker run \
	-p 9000:9000 \
	--name some-clickhouse-server \
	--ulimit nofile=262144:262144 \
	-e CLICKHOUSE_USER=user \
	-e CLICKHOUSE_PASSWORD=pass \
	clickhouse/clickhouse-server

Setting up the FlowG pipeline

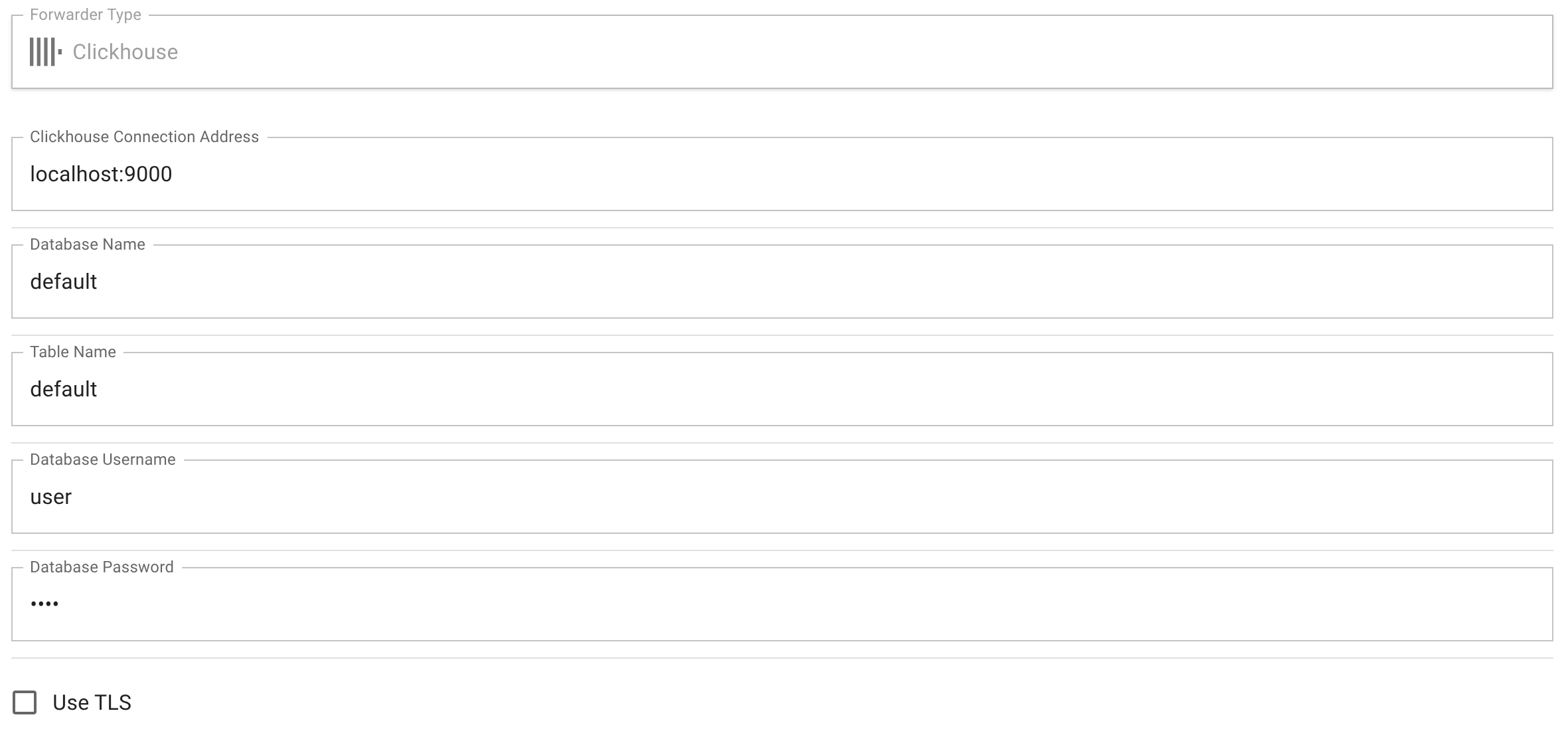

First, let's create a "Clickhouse Forwarder" named clickhouse, with the following configuration:

Forwarder TypeClickhouse

Clickhouse Connection Addresslocalhost:9000

?The Clickhouse client endpoint.

Database Namedefault

?The default database created in the container.

Table Namedefault

?The table name to use for the logs.

Database Usernameuser

?The name of the user specified in the command.

Database Password••••••••••••

?The password of the user specified in the command.

---

Use TLS?The container doesn't set up TLS, so for testing we disable it.

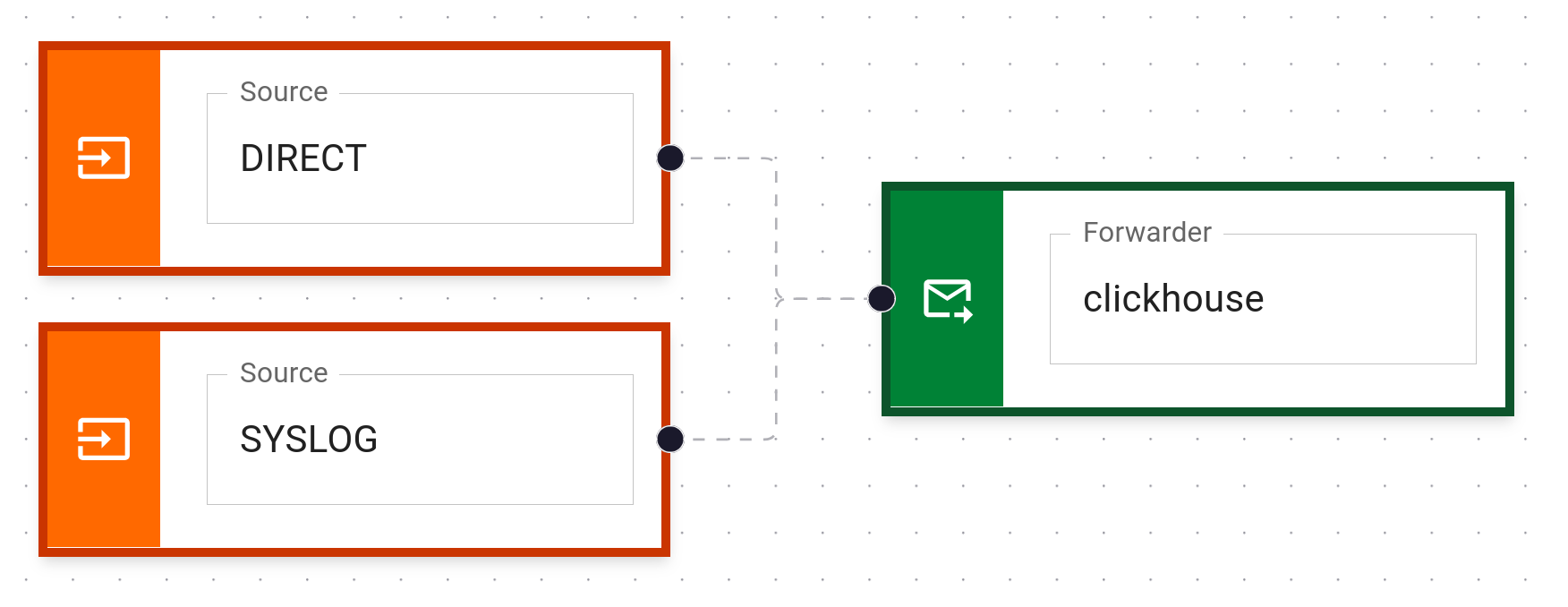

Then, create a pipeline that forwards logs to the clickhouse forwarder:

SourceSYSLOG

Forwarderclickhouse

And that's it!

Testing

You can test the setup by sending a log to the pipeline using the logger command:

logger -n localhost -P 5514 -t my-app 'hello world'

The log will be forwarded to your Clickhouse instance and stored in the specified table.

To query the clickhouse instance for the logs, run the following command:

docker exec some-clickhouse-server clickhouse-client 'select * from default order by timestamp;'

Data model in Clickhouse

Table schema:

CREATE TABLE IF NOT EXISTS tablename (
	id         UUID                 NOT NULL PRIMARY KEY,
	timestamp  DateTime64(3, 'UTC') NOT NULL,
	fields     Map(String, String)  NOT NULL,
) ENGINE = MergeTree
